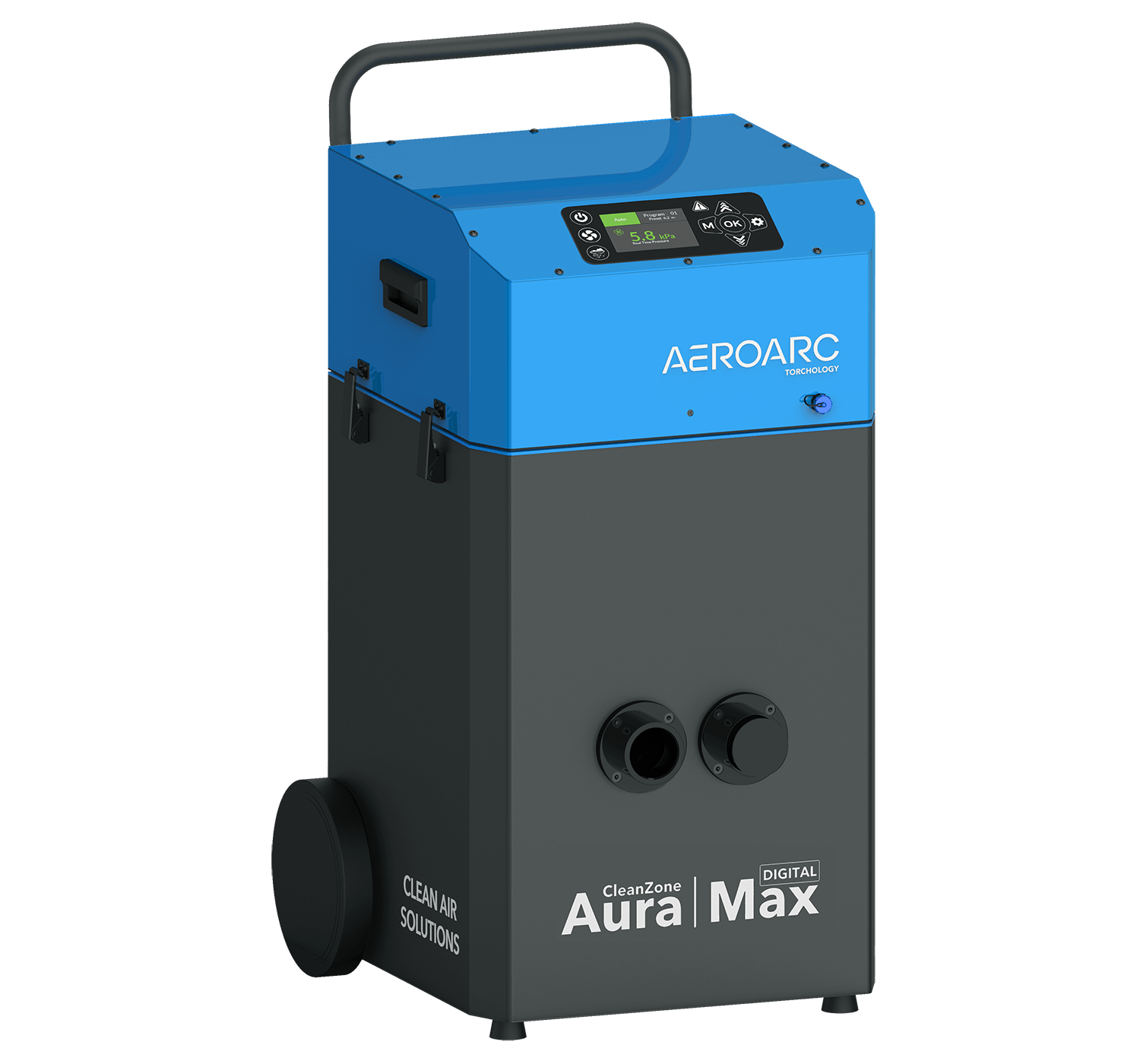

CleanZone Aura Max Digital
On-torch control, optimized performance, premium productivity
Main – 3.5m2
HEPA option – TBC
141.5 m3/h @ 18kPA
223 m3/h @ 5kPA
186 m3/h
230 V / 50Hz-60Hz
Key Features
1
Continuous operation > 5000 hour service life
Auto start/stop function
Auto-cleaning (compressed air)
6L integrated dust tray | Visual and audible alarms | Automatic filter cleaning
Up to 25m (plus torch)
Parameters at a glance – output, filter full, volume flow, start-up/run time
Key Facts
99.9%
Polyester and PTFE
Galvanized Steel
22 kPa
70dB(A) @ 50% 70dB(A) @ 100%
2.2 kW
Storage -20oC -70oC /
Operating -10oC -50oC
Maximum Altitude: Limited to 1000m above sea level
Product Information
Single welding stations
Medium to heavy duty applications
Moderate to high fume generating metals, e.g., mild steel, aluminium, alloy metals, flux cored
Flexible layouts with on-torch digital adjustments
Unit only: 520 x 560 x 930mm
Packaging (inc pallet): TBC
Weight – unit only: 49kg
Gross weight inc pallet: TBC
E10 according to DIN EN 1822
ISO 21904 Part 1 and 2
CleanZone Fume Extraction Unit
Handle Kit
Wheel Set
Support Feet
Auto Mode Sensor
Air Intake Filter
1A Fuse
3mm Allen Key
6mm Allen Key
Interconnection cable x 5m
Extraction hose x 5m with connector
12 months warranty.
Excludes filters, hoses, and wear parts.
