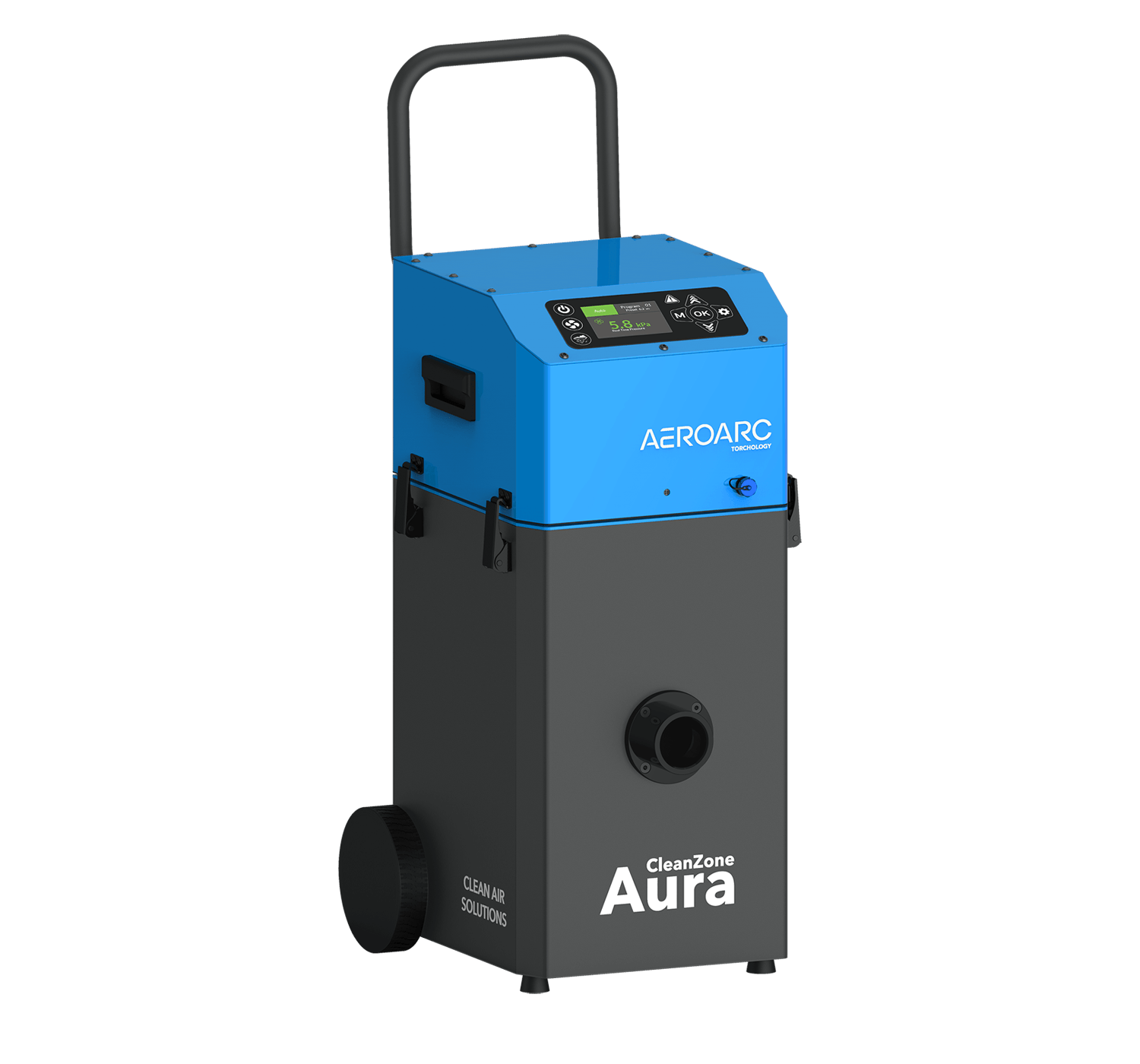

CleanZone Aura
Reliable extraction without unnecessary complexity
1.38m2
65m3/h @ 18kPA 128m3/h @ 5kPA
186 m3/h
230 V / 50Hz-60Hz
Key Features
1
Continuous operation > 5000 hour service life
Auto start/stop function
Auto-cleaning (compressed air)
6L integrated tray | Visual and audible alarms | Automatic filter cleaning
Up to 20m (plus torch)
Parameters at a glance – output, filter full, volume flow, start-up/run time
Key Facts
99.9%
Polyester and PTFE
18KPa
70dB(A) @ 50% 70dB(A) @ 100%
1.2 kW
Storage -20oC -70oC /
Operating -10oC -50oC
Maximum Altitude: Limited to 1000m above sea level
Downloads
Product Information
Single torch welding station
Medium to heavy duty applications
Low to moderate fume generating metals, e.g., mild steel, aluminium, alloy metals
Up to 20m hose interconnection (plus torch)
Unit only: 380 x 420 x 900mm
Packaging (inc pallet): TBC
Weight – unit only: 29kg
Gross weight inc pallet: TBC
E10 according to DIN EN 1822
ISO 21904 Part 1 and 2
CleanZone Fume Extraction Unit
Handle Kit
Wheel Set
Support Feet
Auto Mode Sensor
Air Intake Filter
1A Fuse
3mm Allen Key
6mm Allen Key
Interconnection cable x 5m
Extraction hose x 5m with connector
12 months warranty.
Excludes filters, hoses, and wear parts.
